20-400mm Electrofusion Vuam Tshuab Rau Gas, Dej Yas Yeeb Nkab Fitting

Lus piav qhia luv luv:

1. Lub npe:Electrofusion Tshuab nrog Scanner

2. Qauv:ZDRJ400 (20-400mm)

3. Fais fab mov:3500 W

4. Lub peev xwm nco:4000 qhia

5. Daim ntawv thov:HDPE / PP / PVDF kav & fittings.

6. Ntim:aluminium case

7. Warranty:2 Xyoo.

8. Kev xa khoom:Hauv Tshuag, Kev xa khoom sai.


Product Detail

Daim ntawv thov

Khoom cim npe

Cov lus qhia ntxaws

CHUANGRONG yog ib lub tuam txhab sib koom ua lag luam thiab kev lag luam sib koom ua ke, tsim nyob rau xyoo 2005 uas tau tsom mus rau kev tsim khoom ntawmHDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & li qub, thiab muag cov yas yeeb nkab vuam tshuab, yeeb nkab cuab yeej, yeeb nkab kho Clampthiab lwm yam.

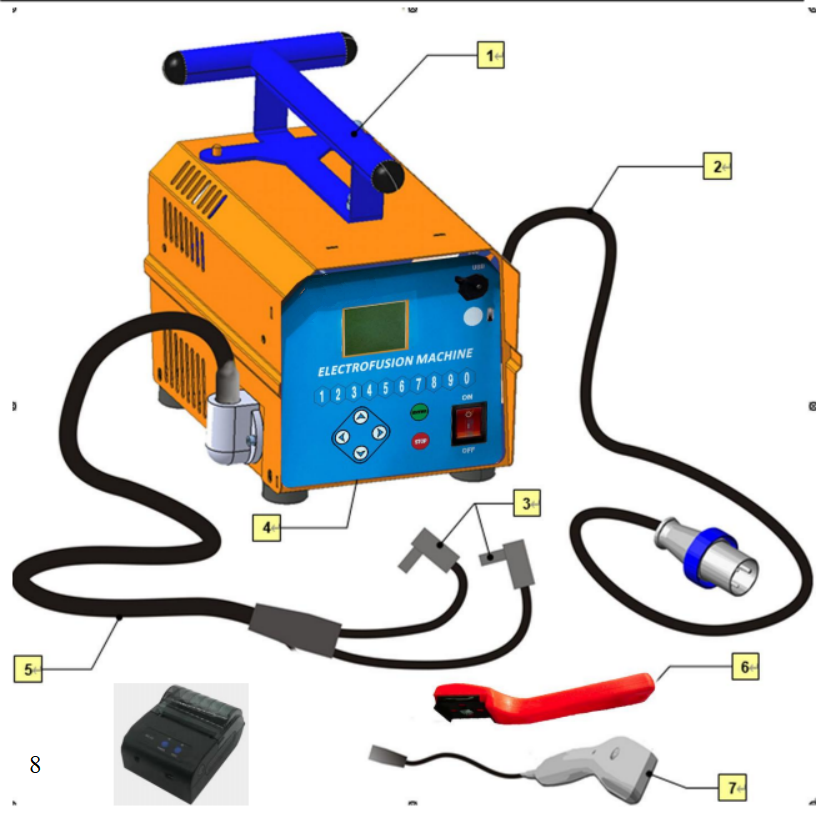

Electrofusion Tshuab nrog Scanner



orking Range 20-400 hli
Vuam output voltage 8-44 V
Ib theem 2 20v
Fais fab mov 50-60Hz
Max.absorbed zog 3500 W
Max. tso zis tam sim no 80 A
60% Lub luag haujlwm lub voj voog tso zis 48 A
Lub peev xwm nco 4000
Kev tiv thaiv qib Tus IP 54
Dimensions tshuab (WxDxH) 358 * 285 * 302 hli
Qhov hnyav 23 Kg
  • Ua ntej siv lub welder ua tib zoo nyeem cov lus qhia rau kev siv thiab cov tshuaj txheeb ze.
  • CEEB TOOM!Thaum siv cov khoom siv hluav taws xob, ua raws li cov cai tswj kev nyab xeeb tiv thaiv hluav taws thiab ua rau muaj kev phom sij.



  • UA HAUJ LWM UA HAUJ LWM.Cov chaw ua haujlwm tsis huv yog ua rau muaj xwm txheej.



  • UA TSAUG NTAU RAU COV CHAW UA HAUJ LWM.Tsis txhob tso cov cuab yeej lossis cov welders rau nag.Tsis txhob siv cov cuab yeej lossis cov welder hauv qhov chaw ntub dej.Siv lub teeb pom kev zoo.Tsis txhob siv cov cuab yeej lossis cov khoom siv hluav taws xob ze ze ntawm cov kua lossis cov roj hluav taws xob.
  • Tiv thaiv koj tus kheej los ntawm SHOCK HAZARD.Tsis txhob sib cuag nrog cov khoom txuas nrog lub ntiaj teb.Ceev faj rau cov kab hluav taws xob.
  • THOV KOM PAUB TIAS NTAWM LUB CHAW UA HAUJ LWM HAUJ LWM HAUJ LWM.Tsuas yog cov neeg tau txais kev tso cai raug tso cai siv cov cuab yeej thiab cov welders.Khaws cov neeg txawv teb chaws tawm ntawm qhov chaw ua haujlwm.
  • Khaws cov cuab yeej thiab cov vuam vuam hauv qhov chaw nyab xeeb.Welders thiab cov cuab yeej feem ntau yuav tsum tau khaws cia rau hauv qhov chaw qhuav thiab tsis tuaj yeem nkag mus rau cov neeg tsis raug cai.
  • Tsis txhob STREES TOOLS ntau dhau.Khaws tsis pub dhau qhov txwv muab los ntawm cov chaw tsim khoom kom tau txais kev ua tau zoo tshaj plaws, ntev dua thiab nyab xeeb dua.
  • YUAV TSUM siv cov cuab yeej tsim nyog.Ib txwm siv cov khoom siv sib xws nrog cov welder (ceev faj nrog cov tshuab hluav taws xob, hluav taws xob thiab vuam txuas ntxiv, adapters).Cia cov cuab yeej hluav taws xob kom txias tshwj xeeb tom qab siv ntev.Kev siv cov khoom siv sib txawv thiab cov cuab yeej siv los ntawm cov uas tau qhia los ntawm cov chaw tsim khoom tuaj yeem ua rau raug mob rau tus neeg teb xov tooj, kev puas tsuaj rau vuam thiab lwm yam cuab yeej thiab tshem tawm qhov lav.
  • Tsis txhob siv welder cables lossis lwm yam cuab yeej 'kab rau kev siv tsis raug.Tsis txhob siv cov cables los nqa lub tshuab lossis tshem tawm cov ntsaws ntawm qhov hluav taws xob.Tiv thaiv welder thiab cables los ntawm kev sib cuag nrog cov khoom ntse.



  • YUAV UA LI CAS YUAV TSUM TAU TXAIS KEV RUAJ NTSEG.Yuav tsum kaw cov yeeb nkab thiab fittings hauv qhov tshwj xeeb aligner.Txoj kev no lav qhov zoo vuam thiab kev nyab xeeb ntawm tus neeg teb xov tooj.
  • CEEB TOOM!Sim kom tsis txhob muaj kev sib tsoo ntawm kev siv vuam thiab cov cuab yeej.Thaum tig lub tshuab hluav taws xob, vuam yuav tsum tau txiav tawm ntawm nws thiab txuas tsuas yog tom qab ob peb feeb, txij li lub tshuab hluav taws xob pib thaum pib thiab kom txog thaum nws tau mus txog qhov chaw tsis tu ncua, tuaj yeem tsim cov peaks uas tuaj yeem ua rau lub rooj tsavxwm thiab cov khoom siv hluav taws xob puas.Khaws welder disconnected thaum muab tso rau ntawm adapters pins.Thaum pib cov cuab yeej hluav taws xob, xyuas kom tseeb tias qhov hloov tsis nyob hauvtxoj hauj lwm 1(ON) thaum txuas ntsaws rau cov kab hluav taws xob lossis lub tshuab hluav taws xob (tshwj xeeb tshaj yog tias lub cuab yeej tsis muaj qhov hloov pauv kev nyab xeeb).Tsis txhob nqa cov cuab yeej txuas nrog cov kab hluav taws xob, lawv tuaj yeem yuam kev.



  • Ua ntej pib welding txheej txheem ua kom paub tseeb tias lub vuam tsis puas.Ua ntej siv lub welderxyuas kom meej tias cov khoom siv kev nyab xeeb ua haujlwm zoo kawg nkaus (tsis tuaj yeem tua hluav taws xob).Kuj xyuas, tsis muaj;xyuas tias adapter pins thiab terminals zoo kawg nkaus haum ib leeg thiab qhov chaw ntawm kev sib cuag yog huv si.Xyuas kom tus welder tus ncej tsis tau puas lawm (dej infiltration yuav tshwm sim).
  • Kev kho thiab kev tshuaj xyuas ib ntus yog qhov tshwj xeeb ntawm kev ua haujlwm ntawm cov chaw pabcuam uas tau tso cai los ntawm cov chaw tsim khoom.Cov cuab yeej siv no ua raws li kev cai lij choj kev nyab xeeb nyob rau hauv lub zog vim li no kev pabcuam thiab kho tsuas yog ua tau los ntawm cov chaw pabcuam tau tso cai;ntawm qhov tsis sib xws, cov neeg tsim khoom tsis kam lees lub luag haujlwm.



  • TSIS TXAUS SIAB RAU HAUV MACHINE.
  • Cov neeg ua haujlwm yuav tsum tau npaj kom zoo rau kev siv cov khoom siv.
  • Tsuas yog siv cov cuab yeej tshiab, kho lossis kuaj xyuas los ntawm CERVICE CENTER.
  • Ua raws li txoj cai DL 12.11.94 n° 626 Hais txog kev nyab xeeb hauv chaw ua haujlwm.
  • TSIS TXHOB siv lub tshuab yog tias thaj chaw muaj kev pheej hmoo ntawm kev tawg vim muaj qhov tshwm sim ntawm cov nplaim hluav taws xob thiab lwm yam..
1. Tsis siv neeg hluav taws xob melting tshuab tag nrho
2.Multifunctional lub cev
3. Lub scanner tau nyeem thiab luam theej duab QR code
4.Built-in nco, tuaj yeem ua 4000 vuam
5. Cov ntaub ntawv hloov software rau USB ntaus ntawv, laptop lossis tshuab luam ntawv



Khoom npe: Yas Yeeb Nkab Fitting Electrofusion Vuam Tshuab Hom: Submerged Arc Vuam Khoom
Qhov Loj: 20-400 hli Warranty: 1 Xyoo
Kev Siv Hluav Taws Xob: 230V Ib Phase, 50/60Hz Qhov hnyav ntawm lub tshuab: 23kg ua

Product Description

ZDRJ yog lub tshuab electrofusion ua haujlwm nrog ntau hom electrofusion fittings, manually.Welder ZDRJ tswj, nrog lub microprocessor, tso zis ntawm lub zog raws li cov neeg ua haujlwm tsis muaj.WelderZDRJtuaj yeem welding txhua yam fittings hauv PE thiab PP-R uas tuaj yeem siv nrog vuam voltages ntawm 8 / 44 V nrog rau kev tawm tswv yim ntawm 75 A (ncej 100 A).



Vuam program



  1. Qhib lub tshuab hluav taws xob thiab tos kom txog thaum nws ruaj khov.
  2. Txuas lub tshuab rau lub tshuab hluav taws xob (lossis rau kab) thiab tig rau.
  3. Txuas haum rau weld tom qab npaj cov kav dej.
  4. Teem lub sijhawm vuam qhia los ntawm cov chaw tsim khoom nrog cov yuam sij+thiab-.
  5. Teem vuam voltage qhia los ntawm cov chaw tsim khoom.
  6. Nias qhov tseem ceebOKpib vuam lossis qhov tseem ceebTSIS TAUrov pib dua.
  7. Tom qab vuam tawm qhov haum kom txias rau lub sijhawm qhia los ntawm cov chaw tsim khoom.

Nco tseg



Cov lus piav qhia luv luv no, sawv cev rau ib ntu ntawm cov txheej txheem vuam.Thaum muaj teeb meem, xa mus rau phau ntawv siv thiab tu.

Peb pom zoo kom nyeem tag nrho phau ntawv qhia txhawm rau ua kom paub thiab tau txais kev paub txog lub tshuab ua haujlwm zoo.
